Powerscreen impact crushers are designed to excel as primary impactors, taking large feed material and reducing it down to a sellable product. They’re also highly suitable for secondary applications, fed by a primary crusher and reduced to a finer product shaping applications including making chips, sand, concrete manufacture, and glass recycling. The range includes both horizontal and vertical impact crushers.
Trakpactor Horizontal Shaft Impact Crushers
The Powerscreen® Trakpactor series of horizontal impact crushers offers producers a high reduction rate and excellent product shape for quarry and recycling applications.
With track mobility, the impactor can work in the most demanding environments and producers will appreciate the rapid setup time, fuel-efficient drive systems, and excellent throughput capacity.
The Trakpactor 320 comes standard with Powerscreen Pulse telematics system for machine performance monitoring.
The Powerscreen® Trakpactor 260 is a compact impact crusher which has been designed to offer both excellent reduction and high consistency of product yield. With its compact design and ease of mobility, the Trakpactor 260 is primarily suited to recycling, demolition and mining applications. The plant offers users both excellent reduction and a high consistency of product shape alongside key features such as hydraulic overload protection.
| Output Potential | 250 tph* (275 US tph) |
| Transport Dimensions | Width: 8’3″ Length: 44’4″ Height: 10’6” |
| Working Dimensions | Width: 12’11” Length: 44’1″ Height: 11’3″ |
| Weight | Tier 3: 58,092lbs Tier 4: 56,769lbs |
| CSS Range | Min lower: .75″ Max lower: 2″ Min upper: 1.6″ Max upper: 4.7″ |
The Powerscreen® Trakpactor 260SR is a compact impact crusher which has been designed to offer excellent reduction and high consistency of product yield. With its compact design and ease of mobility, the Trakpactor 260SR is primarily suited to recycling, demolition, and mining applications. A post-screen system and recirculating conveyor allows oversize material to be passed back to the crusher for further sizing.
| Output Potential | Output potential up to 250 tph* (275 US tph) |
| Transport Dimensions | Width: 9’10” Length: 48’8″ Height: 10’6” |
| Working Dimensions | Width: 19’1″ Length: 51’10” Height: 12’8″ |
| Weight | Tier 3: 71,650lbs Tier 4F: 74,847lbs |
| CSS Range | Min lower: .75″ Max lower: 1.6″ Min upper: 2″ Max upper: 4.7″ |
The Powerscreen Trakpactor 290 Impact Crusher is a versatile and easy to use machine that can operate in the most demanding of applications such as construction and demolition, asphalt, concrete, and natural rock. Its compact design allows it to operate in small landing spaces. The machine sets up rapidly and is simple to operate. The compact size also provides extreme ease of transportation that makes this portable crusher an ideal solution for remote job sites.
| Output Potential | 290 tph (320 US tph) |
| Transport Dimensions | Width: 8’4″ Length: 32’9″ Height: 10’5″ |
| Working Dimensions | Width: 17’1″ Length: 41’5″ Height: 12’2″ |
| Weight | 63,273lbs |
| CSS Range | Min lower: .75″ Max lower: 3″ Min upper: 2″ Max upper: 6″ |
The Powerscreen Trakpactor 290SR Impact Crusher performs in the most challenging of applications such as construction and demolition, asphalt, concrete, and natural rock. The compact design allows it to operate in small landing spaces and easily be transported from site to site. The integrated system on the 290SR ensures the required product specification is achieved with oversize material either being recirculated back to the crusher or stockpiled.
| Output Potential | Output potential 290 tph (320 US tph) |
| Transport Dimensions | Width: 9’6″ Length: 48’5″ Height: 10’5″ |
| Working Dimensions | Width: 17’1″ with bypass conveyor Length: 48’5″ Height: 13’6″ |
| Weight | 75,398lbs |
| CSS Range | Min lower: .75″ Max lower: 3″ Min upper: 2″ Max upper: 6″ |
The Powerscreen® Trakpactor 320 is a mid-sized horizontal impact crusher designed to offer operators and contractors both excellent reduction and high consistency of product shape for performance in quarry and recycling applications. With track mobility, the impactor is capable of working in the most demanding environments and features a rapid set-up time, fuel efficient direct drive system, and excellent throughput capacity. The Trakpactor 320 comes standard with Powerscreen Pulse telematics system for machine performance monitoring.
| Output Potential | 320 tph (352 US tph) |
| Transport Dimensions | Width: 8’5″ Length: 48’6″ Height: 11’4″ |
| Working Dimensions | Width: 18’2″ with bypass conveyor Length: 47’1″ Height: 12’8″ |
| Weight | Tier 4F VGF: 80,601lbs Tier 4F Pre-screen: 84,128lbs |
| CSS Range | Min lower: .75″ Max lower: 2″ Min upper: 3″ Max upper: 6″ |
The Powerscreen Trakpactor 320SR is a mid-sized impactor redesigned with key enhancements to offer operators and contractors excellent reduction and high consistency of product shape. Powerscreen® Trakpactor 320SR features a screen and recirculating (SR) conveyor which returns oversized product to the crusher for further reduction. The plant features a quick-detach post-screen section which converts it to a standard Trakpactor 320 unit. Another key feature is the recirculating conveyor which raises for transport allowing more ground clearance under the machine when moving on site and while loading for transport.
| Output Potential | 320 tph (352 US tph) |
| Transport Dimensions | Width: 10’2″ Length: 57’8″ Height: 11’4″ |
| Working Dimensions | Width: 19’1″ with side conveyor Length: 56’6″ Height: 15’5″ |
| Weight | Tier 4F VGF: 102,647lbs Tier 4F Pre-screen: 112,436lbs |
| CSS Range | Min lower: .75″ Max lower: 2″ Min upper: 3″ Max upper: 6″ |
The Powerscreen® Trakpactor 550 horizontal shaft impactor is designed for processing soft to medium-hard primary & secondary materials such as natural rock & construction derived materials like asphalt, recycling & demolition waste. Material is fed into the large feed hopper, common on both vibrating grizzly feeder & live pre-screen versions, both feature a selectable crusher bypass facility & optional fines discharge conveyor.
| Output Potential | 500tph (550 US tph)* |
| Transport Dimensions | Width: 9’10″ Length: 57’5″ Height: 16’10” |
| Working Dimensions | Width: 22’10” with bypass conveyor Length: 58’6″ Height: 16’9″ |
| Weight | Tier 3 VGF: 120,924lbs Tier 4F Pre-screen: 126,656lbs |
| CSS Range | Min lower: .75″ Max lower: 8″ Min upper: 1.4″ Max upper: 8″ |
The Powerscreen® Trakpactor 550SR is a tracked impact crusher which is versatile, efficient and highly productive. It offers both excellent reduction and a high consistency of product yield in quarrying, recycling and demolition applications. The machine has been designed with excellent material flow and serviceability in mind. In addition, the machine can be configured for work safely and in record time as set-up is all carried out at ground level. The robust Terex impact chamber features c-shaped blowbars as standard for better impact and a time-saving hydraulic adjust option.
| Output Potential | 500tph (550 US tph)* |
| Transport Dimensions | Width: 11’4″ Length: 70’4″ Height: 12’6″ |
| Working Dimensions | Width: 22’11” with bypass conveyor deployed Length: 69’11” Height: 19’2″ |
| Weight | Tier 3 VGF: 147,269lbs Tier 4F Pre-screen: 158,733lbs |
| CSS Range | Min lower: .75″ Max lower: 8″ Min upper: 1.4″ Max upper: 8″ |

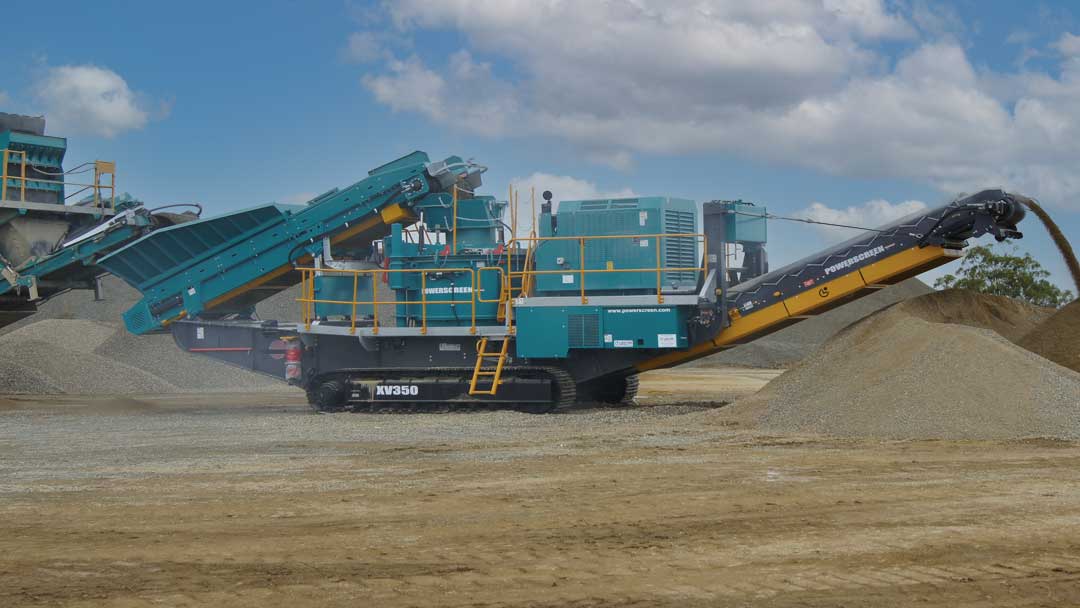

Powerscreen XV350 Vertical Shaft Impactor
Powerscreen XV350 VSI’s are designed for users who require a versatile, productive, and suitable for many applications, including road building, concrete manufacture, manufactured sand, slag, and glass recycling.
The Powerscreen® XV350 vertical shaft impactor has been designed for users who require a plant that excels at producing high specification, shaped product. The machine is economical to operate with a highly fuel efficient direct drive system. This machine is exceptionally versatile due to interchangeable crushing configurations. The XV350 is versatile, productive, and suitable for a number of applications including road building, concrete manufacture, manufactured sand, slag, and glass recycling.
| Output Potential | 350tph (386 US tph)* |
| Transport Dimensions | Width: 9’10” Length: 50’8″ Height: 12’8″ with folding hopper extensions |
| Working Dimensions | Width: 12’8″ Length: 51’2″ Height: 15’1″ |
| Weight | 81,350lbs |
Powerscreen Impactor Gallery
powerscreen-xv350-vertical-shaft-impactor-1080px

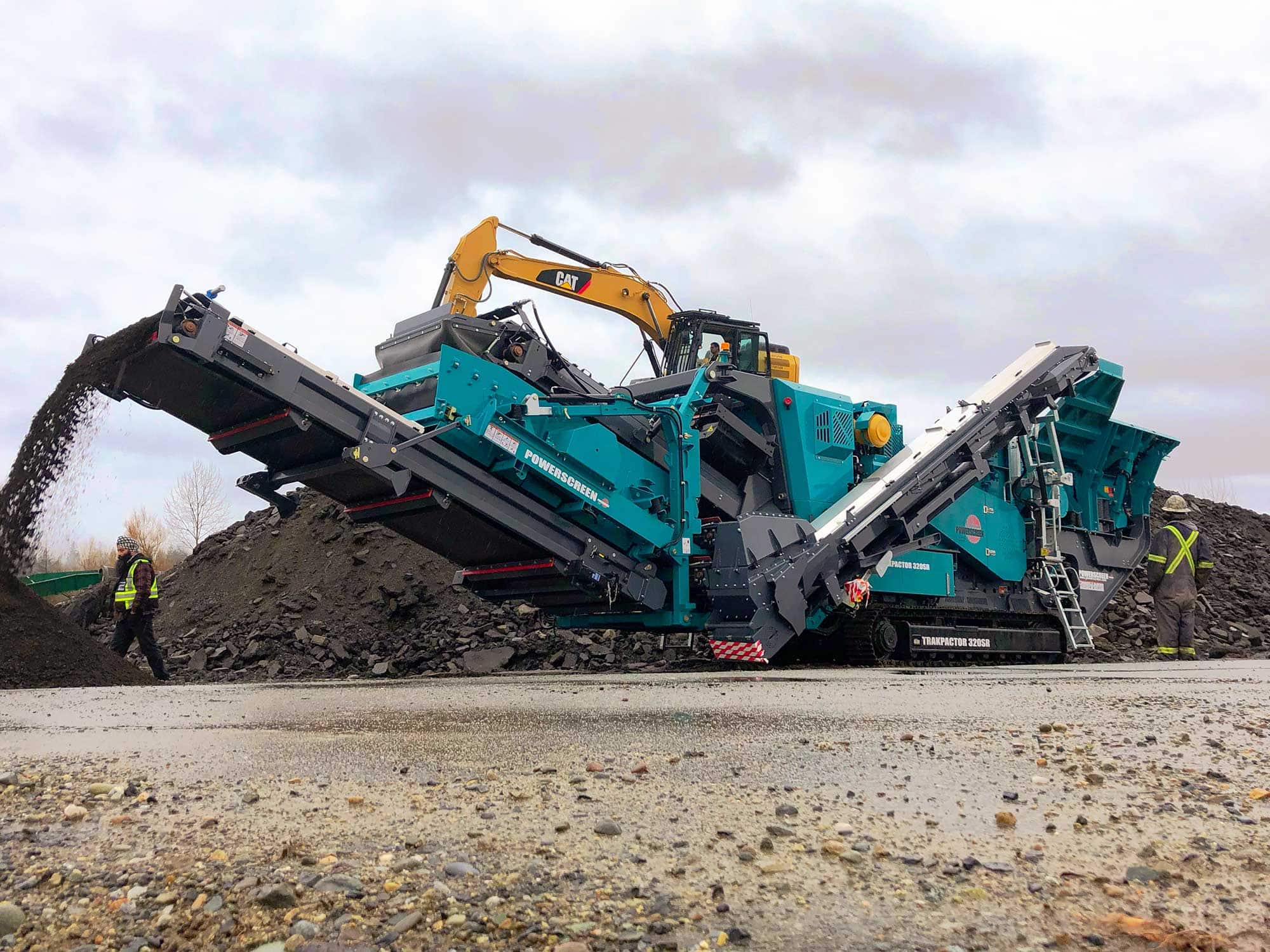

impactor-page-hero

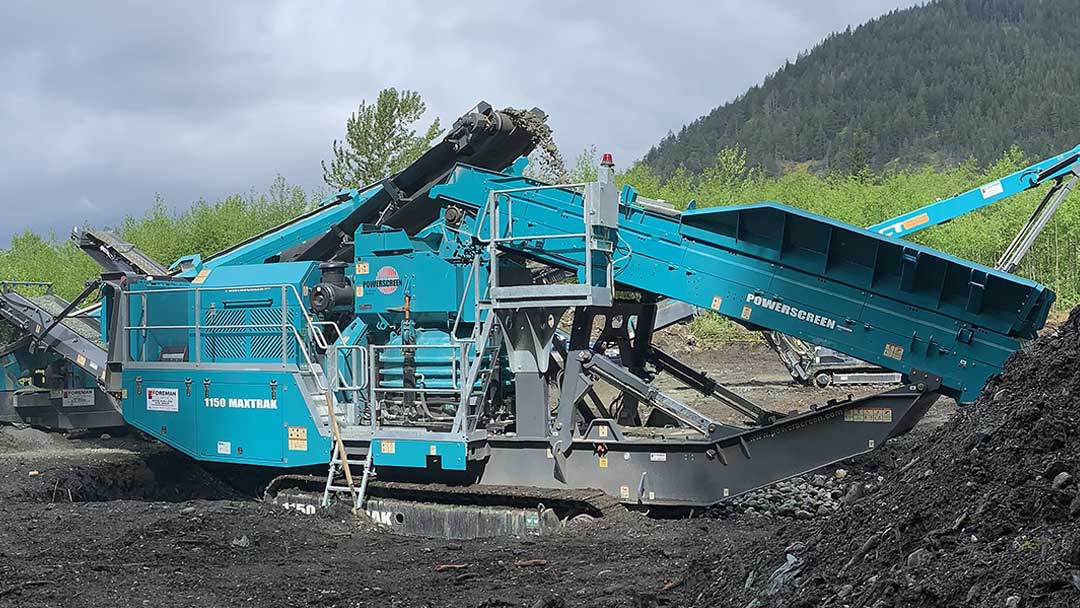

powerscreen-maxtrak-impactor

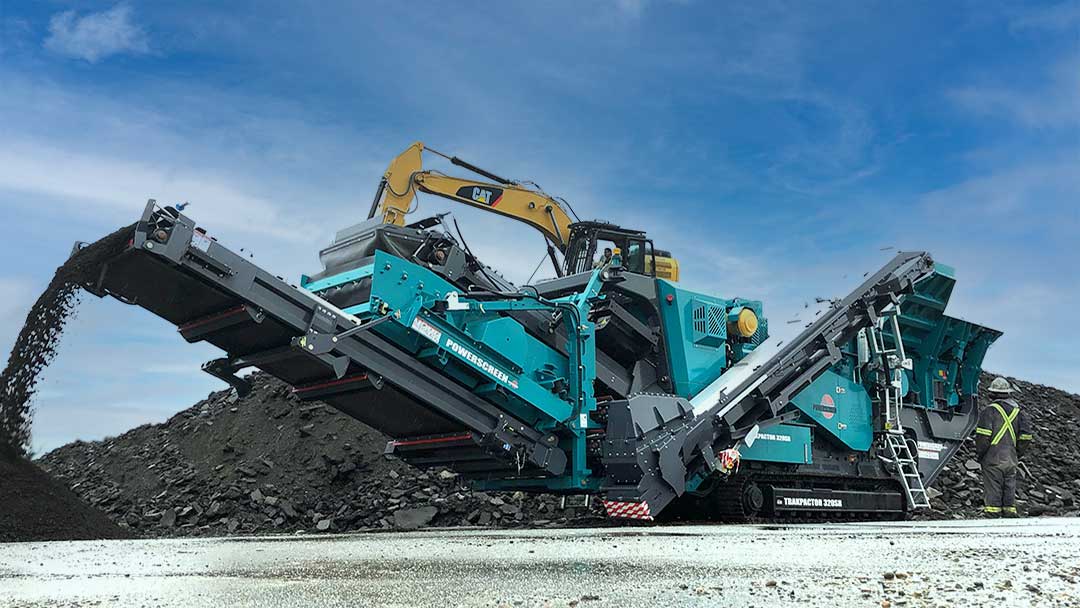

powerscreen-impactor-1080×608

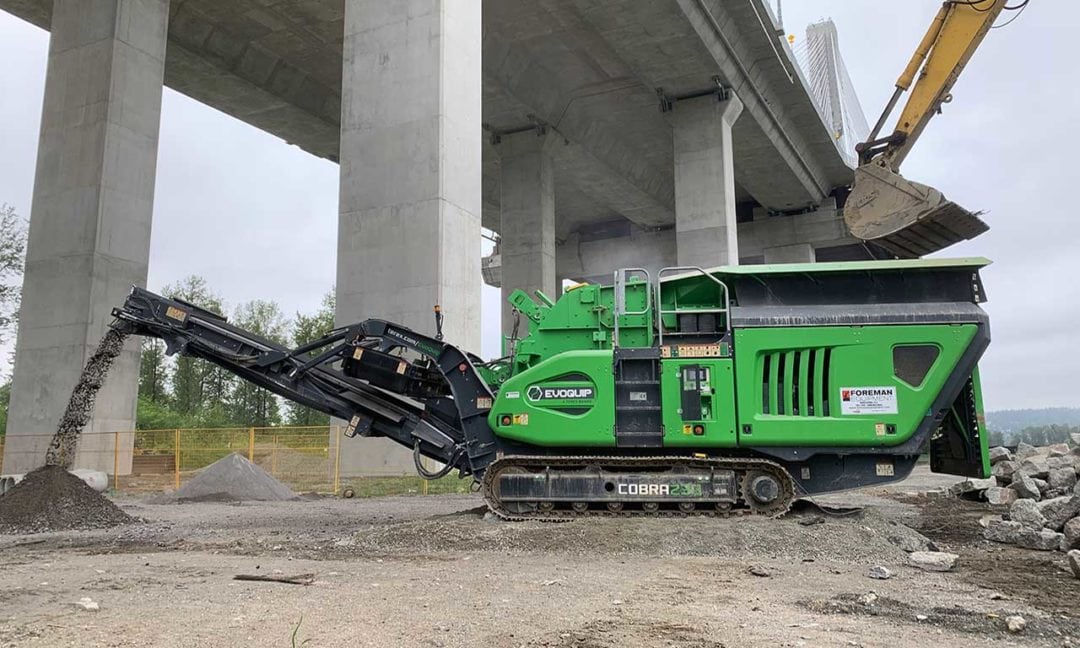

cobra-230-impactor
